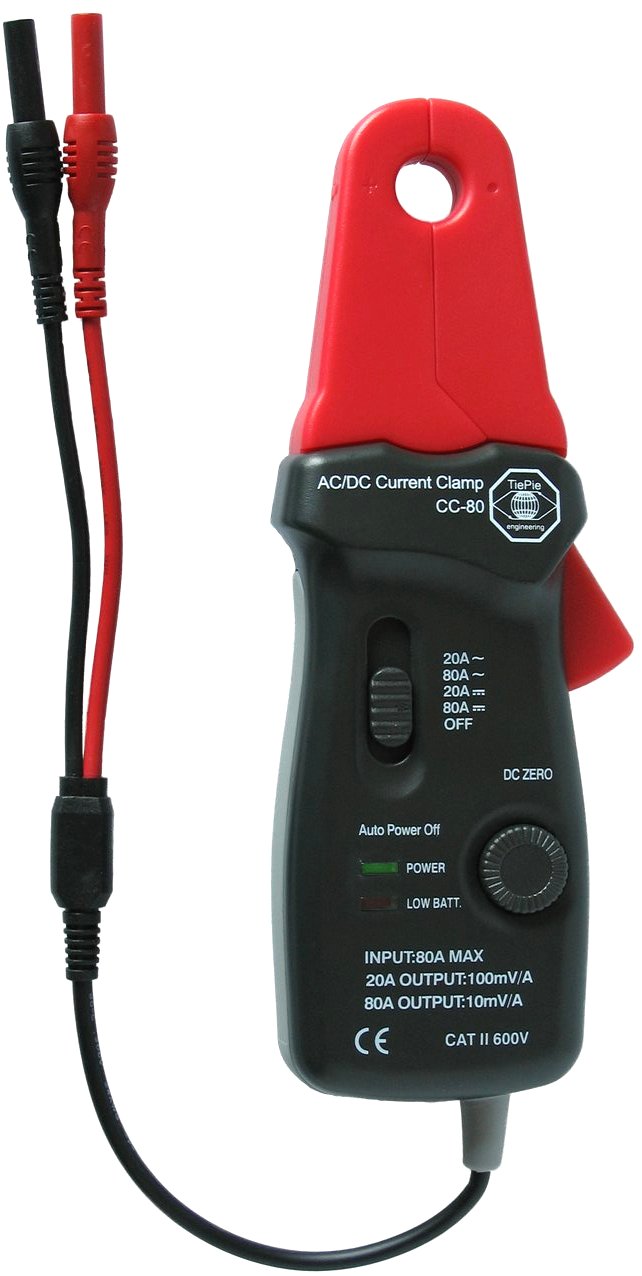

Technical specifications |
| Capture conductor diameter: |
12.5 mm maximum |
| Ranges: |
10 mA ... 20 A
100 mA ... 80 A |
| Bandwith: |
20 kHz maximum |
| Power Supply: |
9V NEDA 1604
6F22 006P battery |
| Battery life: |
80 hrs typical (alkaline battery) |
| Weight: |
240 g |
| Connection: |
cable with 2 x 4 mm banana socket |
| Accuracy DC ... 20 A: |
±3% |
| Accuracy AC ... 20 A: |
±3% (10 mA..10 A, 40 Hz..2 kHz)
±8% (10 A..20 A, 40 Hz..20 kHz) |
| Accuracy DC ... 80 A: |
±3% (100 mA..40 A)
±8% (40 A..80 A) |
| Accuracy AC ...80 A: |
±2% (100 mA..40 A, 40 Hz..2 kHz)
±8% (40 A..80 A, 40 Hz..20 kHz) |
 |
| CC-80 manual: |
download here |
|
 |
|---|
