BH9000A - embedded system DC power supply

embedded system DC power supply


Description

The BH9000A offers six independent DC regulators (+5V, -5V, +12V, +9V, -12V and 3.3V) with a total power of 118 Watt. Each regulator, except +12V and +9V, has independent Schottky diode rectifier with filter. Two regulators (+9V and +12V) share common Schottky diode rectifier with filter. The DC Power Supply BH9000A has standard European format 160 x 100 mm with input DIN 41612 / H15 connector.

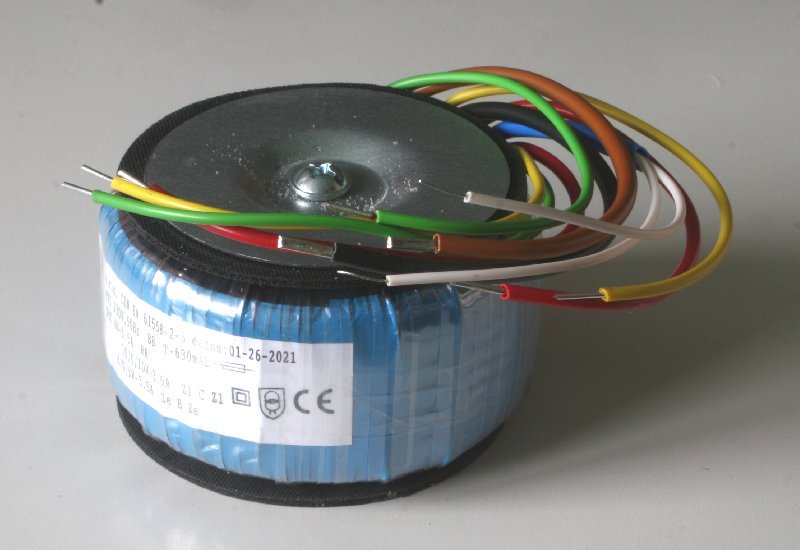

The BH9000A can be powered either from non-regulated AC source, i.e. a transformer or from non-regulated DC source, i.e. battery. The input power is applied on J1 connector (DIN 41612 / H15). If the BH9000A is powered from AC source, the non-regulated and filtered DC power delivered from rectifier's filter to regulator is also available as output on J1 connector.

Output No. default adj. range
1 +5V @ 4A 4.5V ... 5.5V
2 -5V @ 1.5A -4.6V ... -6V
3 +12V @ 3A +9V ... +14V
4 -12V @ 1.5A -10V ... -13.5V
5 +9V @ 3A +7.5V ... +9.6V
6 ±3.3V @ 3A ±2.8V ... ±3.8V

Board size: 100 x 160 mm
