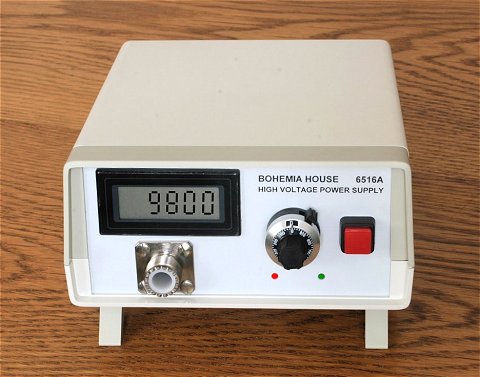

The HV Regulated Power Supply for test purposes offers output in range from 450V to 10 kV with power of 500 mWatt. The output is adjustable with 10-turns precision potentiometer with resolution ±1 Volt. The output stability is aprox. 1 Volt.

The internal HV generator can be disconnected from the output connector with red push button. If disconnected, the internal 4½ digits LCD voltmeter works as HV voltmeter for external voltage up to 20 kV which is applied to HV connector.

The HV Regulated Power Supply use external power supply between 17V to 24V DC at current max 150 mA. LCD voltmeter is powered from internal NiMh battery 9V.

Size: 150 x 85 x 200 mm
